agriculture machine cultivator tractor cheap chinese tractor
- FOB Price
US $35500.01 - 999 piece
- group name
- Agricultural machine tractor
- Min Order
- 1 piece
- model
- TNC654
- Nearest port for product export
- Tianjin port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 21 Nov 2024 16:48:51 GMT
Paramtents
COLOR green
MODEL Four-stroke, water-cooled, in-line, direct injecti
STANDARD POWER 48
GEARBOX SHIFT MODE Gear shift
BRAND IRON BULL
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
Brand: Tieniu
Model: 654 Classification: Wheeled Tractor Supporting Power: 65 horsepower Drive Form: Four-wheel Drive
Product introduction

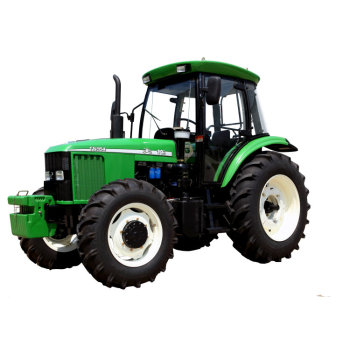

Product Name: IRON bULL 654 Wheel Tractor
Product Details：
|
Model
|
TNC654
|
|
|---|---|---|
|
Type
|
4*4 4WD
|
|
|
External dimensions (length*width*height)mm
|
4540*2030*2810
|
|
|
Wheelbase(mm)
|
|
2375
|
|
Wheeltread
|
Front wheel (level adjustment)
|
1609、1711、1853、1955
|
|
Rear wheel (stepless adjustment)
|
1600-1800
|
|
|
Minimum ground clearance (ground position)mm
|
380（Lower part of front drive axle）
|
|
|
Minimum use quality(kg)
|
4030
|
|
|
Number of gears (forward/backward)
|
12/6
|
|
|
Driving speed
Km/h
|
forward
|
2.7-25.0
|
|
reverse
|
3.3-11.5
|
|
|
PTO output power(kw)
|
≧41.58
|
|
|
main traction force(KN)
|
≧26.4
|
|
|
Engine
|
manufacturer
|
Huafeng Power
|
|
type
|
Four-stroke, water-cooled, in-line, direct-injection combustion chamber
|
|
|
model
|
4RMTI
|
|
|
Bore*Stroke(mm)
|
105*125
|
|
|
Standard power(kw)
|
48
|
|
|
Standard speed(r/min)
|
2000
|
|
|
Clutch type
|
Often combined, single chip, dry, double acting
|
|
|
Gearbox shift mode
|
Gear shift
|
|
|
Tyre model (front wheel/rear wheel)
|
11.2-24 6PR/16.9-34 8PR
|
|
|
Hydraulic suspension system type
|
Half stationary
|
|
|
Hydraulic suspension mechanism
|
Rear located 3 point linkage
|
|
|
Adjustment method
|
Force adjustment, position adjustment, height adjustment
|
|
|
Power output shaft speed (r/min)
|
single speed:766
|
|
|
Maximum lifting force on the frame(KN)
|
≧11.19
|
|
