Dual-purpose crawler tractor climbing tractor medium horsepower
- group name
- Agricultural machine tractor
- Min Order
- 1 piece
- model
- TTL804
- Nearest port for product export
- Tianjin port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 21 Nov 2024 19:57:36 GMT
Paramtents
green dark green
model Four-wheel
Gearbox shift mode Gear shift
IRON IRON BULL
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed

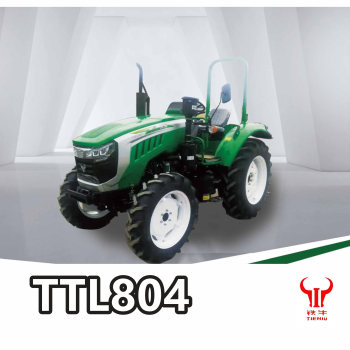

Tiantuo Tieniu TTL804 tractor agriculture medium horsepower four-wheel drive tractor.
Product Details：
Model | TTL804 | |
|---|---|---|
External dimensions (length*width*height)mm | 4080*1830*2730(Top of safety frame) | |
Minimum use quality(kg) | 2800 | |
Type | 4*4 4WD | |
Engine | YN4EZ080-30CR | |
Rated power(kw) | 58.8 | |
Calibration speed(r/min) | 2400 | |
Gearbox form | Mechanical plane composition | |
Steering systerm form | Full hydraulic steering | |
Tyre Type forward | 9.5-24 | |
reverse | 14.9-30 | |
Wheelbase(mm) | 2080 | |
Wheeltread | Front wheel | 1300、1350、1420、1550 |
Rear wheel | 1300-1500 | |
Power transmission speed r/min | 540/760 | |
Hydraulic suspention system form | Seperated type | |
Form of suspension device | Rear three-point suspension | |
Anti-turnover/wheel house | Anti-turnover | |
Maximum counterweight(forward/reverse) | 144/60 | |
Number of hydraulic output groups | 2 groups | |
Optional installation | Wheel house | |
