TNC7501/TNC8501 Tractor Agricultural Machinery Farm Equipment Tractor

group name: 30-150HP tractor

Min Order: 1 piece

model: TNC7501/TNC8501

Nearest port for product export: Tianjin port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 17:03:23 GMT

contact supplier

Paramtents

GREEN DARK GREEN
IRONMAKE FOUR WHEEL
SMALL HORSEPOWER MEDIUM HORSEPOWER
BRAND Arable Bull/OEM

Packging & Delivery

Min Order1 piece

Briefing

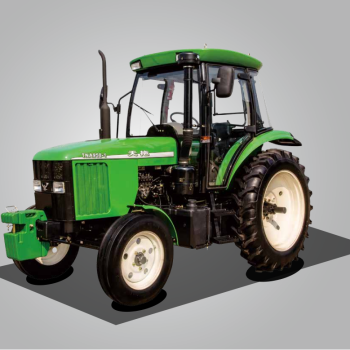

TNC7501 ～ TNC8501 Tractor Agriculture Medium Horsepower Four-Wheel Drive Tractor

Detailed

TNC Series Tractor Product Features

This series of tractor is nine main type covering 30, 35, 40, 45, 50, 55, 60, HP, and there are a variety of

configuration models to choose. ·Compact structure, flexible and convenient operation. ·Large traction force, torque reserve sufficient, good adhesion performance, high comprehensive utilization

rate. Electric start and convenient, low fuel consumption. ·This series of tractors has strong adaptability, wide range of purpose, particularly suitable for paddy field. ·This series of tractor appearance is concise, beautiful and easy

Wheeled Tractors Technical Specification

Model
Part Name	TNC7501	TNC8001	TNC8501	TNC900-1	TNC950-1
mmOver size(length×width Xheight) mm	4480×1920×2790	4480×1920×2790	4480×1920×2790	4700×1980×2800	4700×1980×2800
kg Min. operating weight （kg）	3715	3715	3715	3715	3715
Type	4×2 2WD
Engine	PHF4056ZL6B	PHF4059ZL6B	PHF4063ZL5B	PHF4067ZL5B	PHF4070ZL6B
Rated power (kW)	56	59	63	67	70
Rated speed (r/min)	2300	2300	2200	2200	2300
clutch	double-acting
Shuttle-type Gearshift F/R	12/6 engaged sleeve gearshift
steering system type	Hydraulic steering
Front wheel / Rear wheel	6.5-20/12-38	6.5-20/12-38	6.5-20/12-38	6.5-20/12-38	6.5-20/12-38
Wheelbase (mm ）	2375	2375	2375	2375	2375
mmFront (adjustable) mm	1470/1590/1710	1470/1590/1710	1470/1590/1710	1470/1590/1710	1470/1590/1710
Rear (Stepless adjustment) mm	1550 ～ 1800	1550 ～ 1800	1550 ～ 1800	1550 ～ 1800	1550 ～ 1800
Power output shaft type	Rear semi detached
singlespeedpower outputspeed	832 (8key)	832 (8key)	832 (8key)	832 (8key)	832 (8key)
Tillage depth adjustment method	Force、 position、height responsible system
Hy drauliclifting systemtype	partialseparated unit
suspension type	Rear located 3 point linkage IIcategory
Safety anti tipping frame	Safety anti tipping frame
chair	Adjustable seat
The weight before / after (film)	4*40/380	4*40/380	4*40/380	4*40/380	4/0
