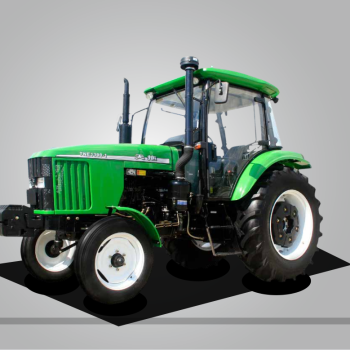

TNC1000-1~TNC1300-1 Tractor Agricultural Machinery Farm Equipment Tractor

group name: 30-150HP tractor

Min Order: 1 piece

model: TNC1000-1~TNC1300-1

Nearest port for product export: Tianjin port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 16:49:36 GMT

contact supplier

Paramtents

GREEN DARK GREEN
IRONMAKE FOUR WHEEL
SMALL HORSEPOWER MEDIUM HORSEPOWER
BRAND Arable Bull/OEM

Packging & Delivery

Min Order1 piece

Briefing

TNC1000-1~TNC1300-1 Tractor Agriculture Medium Horsepower Four-Wheel Drive Tractor

Detailed

TNC Series Tractor Product Features

This series of tractor is nine main type covering 30, 35, 40, 45, 50, 55, 60, HP, and there are a variety of

configuration models to choose. ·Compact structure, flexible and convenient operation. ·Large traction force, torque reserve sufficient, good adhesion performance, high comprehensive utilization

rate. Electric start and convenient, low fuel consumption. ·This series of tractors has strong adaptability, wide range of purpose, particularly suitable for paddy field. ·This series of tractor appearance is concise, beautiful and easy

Wheeled Tractors Technical Specification

Model
Part Name	TNC1000-1	TNC1100-1	TNC1200-1	TNC1300-1
Over size(length×width Xheight) mm	4382×2046×2895	4382×2046×2895	4685×2046×2895	4685×2046×2895
kg Min. operating weight （kg）	3590	3590	3760	3760
Type	4×2 2WD
Engine	LR4B3ZU-T93Y1-U3	LR4M5ZU-T93-U3	LR6M5U-T93-U3	LR6A3ZU-T93X-U3
Rated power (kW)	73.5	81	88.2	95.6
Rated speed (r/min)	2300	2300	2300	2300
clutch	12 inch, dry, double action
Shuttle-type Gearshift F/R	Meshing gear shift
steering system type	Full hydraulic front wheel steering
Front wheel / Rear wheel	7.5-20/16.9-34	7.5-20/16.9-34	7.5-20/16.9-34	7.5-20/18.4-34
Wheelbase (mm ）	2192	2192	2506	2506
mmFront (adjustable) mm	1550)、1650、1750、1850、1950、2050	(1550)、1650、1750、1850、1950、2050	1609/1711/1853/1955	(1550)、1650、1750、1850、1950、2050
Rear (Stepless adjustment) mm	(1616)、1703、1818、1901、2016	(1616)、1703、1818、1901、2016	(1616)、1703、1818、1901、2016	(1616)、1703、1818、1901、2016
Power output shaft type	Post independent
singlespeedpower outputspeed	8 teeth space spline shaft(diameter 38) ； selecting fitting： 21 teeth spline shaft (diameter 35)，or 6 teeth space spline shaft (diameter 35)
Tillage depth adjustment method	Bit adjustment, floating control
Hy drauliclifting systemtype	Split type
suspension type	Rear located 3 point linkage IIcategory
Anti tipping frame / cab	Adjustable seat
chair	Adjustable seat
The weight before / after (film)	11（slice）/1（layer）
Theweightbefore/after (kg)	two group
