TNC1104 ～ TNC1504 Tractor Agricultural Machinery Farm Equipment Tractor

group name: 30-150HP tractor

Min Order: 1 piece

model: TNC1104 ～ TNC1504

Nearest port for product export: Tianjin port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Sat, 18 Jan 2025 11:46:58 GMT

contact supplier

Paramtents

GREEN DARK GREEN
IRONMAKE FOUR WHEEL
SMALL HORSEPOWER MEDIUM HORSEPOWER
BRAND Arable Bull/OEM

Packging & Delivery

Min Order1 piece

Briefing

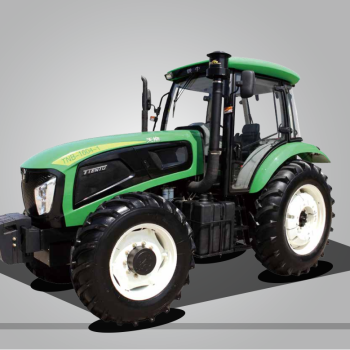

TNC1104 ～ TNC1504 Tractor Agriculture Medium Horsepower Four-Wheel Drive Tractor

Detailed

TNC Series Tractor Product Features

·"TieNiu" brand series of high-horsepower wheeled tractor transmission box and the power output using mesh set shift, solve the problem to take off the block.

·Electrical control system adopts an integrated circuit, small volume, convenient installation, high safety performance.

·Hydraulic caliper brakes, braking effect is stable, energy saving. Gear more, wide speed range, and can satisfy various operation requirements

·Full hydraulic steering device, convenient operation, labor saving. Automatic antiskid differential, good adhesion performance, more gear the power output, supporting a variety of multiple operating machinery, to meet the plough, harrow, rotary tillage, subsoiling, sowing, harvesting and other field operations requirements, also can be used as a fixed power operation and short-distance transport operations.

·According to the requirements of operation more convenient and labor requirements, move back and forth adjustable seat, make your driving more comfortable, more efficient work.

Wheeled Tractors Technical Specification

Model
Part Name	TNC1104	TNC1204	TNC1304	TNC1854	TNC1504
mmOver size(length×width Xheight) mm	5120×2218×3105	5120×2218×3105	5120×2218×3140	5120×2218×3140	5120×2218×3140
kg Min. operating weight （kg）	6125	6125	6325	6325	6325
Type	4×4 4WD
Engine	LR6M5U23/0810E	LR6M5U23/0882E	LR6A3ZU23/0956E	LR6M3ZU23/1030E	LR6M3ZU23/1103E
Rated power (kW)	81	88.2	95.6	103	110.3
Rated speed (r/min)	2300	2300	2300	2300	2300
clutch	Dry, monolithic, often joint, 350 single-acting clutch, power, pedal manipulation
Shuttle-type Gearshift F/R	(1+1)×(5×4)type of options when crawling to(1+1)×(5×4)×2component type, with reverse speed limit, basic is 20 + 15 r, f optional crawl to 40 f + 30 r file; Helical and spur gears, synchronizer and meshing swap file, main and deputy speed for manipulation
steering system type	Independent oil, hydraulic steering, front wheel steering
Front wheel / Rear wheel	14.9-26 /16.9-38	14.9-26 /16.9-38	14.9-28 /18.4-38	14.9-28 /18.4-38	14.9-28 /18.4-38
Wheelbase (mm ）	2718	2718	3080	2718	2718
Front (adjustable) mm	1650、1760、1778、1862、 1888、1972、1990、2100	1650、1760、1778、1862、 1888、1972、1990、2100	1650、1760、1778、1862、 1888、1972、1990、2100	1650、1760、1778、1862、 1650、1760、1778、1862、 1888、1972、1990、2100	1888、1972、1990、2100
Rear (Stepless adjustment) mm	1650 ～ 2368	1650 ～ 2368	1650 ～ 2368	1650 ～ 2368	1650 ～ 2368
Power output shaft type	Post and independence
singlespeedpower outputspeed	760/1000or540/1000
Tillage depth adjustment method	position、height responsible system
Hy drauliclifting systemtype	separated unit
suspension type	Class II	Class II	Class Ⅲ	Class Ⅲ	Class Ⅲ
Anti tipping frame / cab	Safe driving room
chair	Adjustable seat
The weight before / after (film)	400/400	400/400	500/600	500/600	500/600
Theweightbefore/after (kg)	three group
