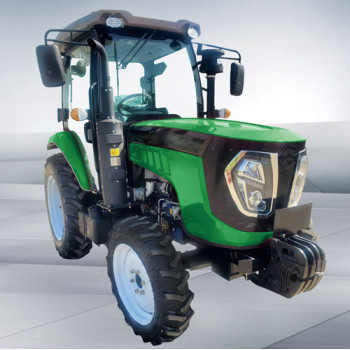

Unicorn1104/1304/1404/1504 best tractor for agriculture

group name: 30-150HP tractor

Min Order: 1 piece

model: TNC 754/854/954 tractor

Nearest port for product export: Tianjin port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 16:53:33 GMT

contact supplier

Paramtents

Drive Four wheel drive
Brand Arable Bull/OEM
PTO r/min 540/720 r/min
Wheelbase 2590/2650/2750 mm
Gear shift 12F+12R
Dimension（mm） 4950×2210×2900 / 5100×2260×3100

Packging & Delivery

Min Order1 piece

Briefing

Unicorn1104/1304/1404/1504 best tractor for agriculture,We offer OEM, ODM, dealership, and wholesale options

Detailed

Best tractor for agriculture Unicorn1104/1304/1404/1504 tractor

Products Feature:

1.Unicorn1104-1504 is a versatile high-power agricultural wheeled tractor with compact structure, easy operation, flexible steering, strong traction, wide range of uses, and convenient maintenance. It features a unique patented chassis design, four-wheel drive, and a semi-trailer. There are two types of gearboxes available: 24F+8R (high-medium-low) and 16F+8R. It has full hydraulic power steering and a dual-action clutch.

2.Comprehensive adjustment of force and position, floating control suspension

3.The tractor also comes with a luxurious cab, hydraulic power assist, multi-load switch, reverse camera. The powerful engine, reinforced key chassis components, optimized gears make it more suitable for deep loosening and deep cultivation operations.

Model	Unicorn1104	Unicorn 1304	Unicorn1304F	Unicorn1404F	Unicorn1504F
Drive mode	Four wheel drive	Four wheel drive	Four wheel drive	Four wheel drive	Four wheel drive
Dimension（mm）	4950x2210x2900	4950x2210x2900	5100x2260x3100	5100x2260x3200	5100x2260x3200
Rated power（kw）	80.9	95.6	95.6	103	110.3
Coefficient of torque reserve	≥20%	≥20%	≥20%	≥20%	≥20%
Tank volume（L）	240	240	300	300	300
PTO r/min	540/720	540/720	540/720	760/850	760/850
Wheel base(mm)	2590	2590	2650	2650	2750
Gear shift	12F+12R	12F+12R	12F+12R	16F+8R	16F+8R
Clutch	Dry, dual purpose	Dry, dual purpose	Dry, dual purpose	Dry, dual purpose	Dry, dual purpose
Speed（km/h）	Forward 1.65-33.56 Reverse 2.04-26.17	Forward 2.32-29.8 Reverse 2.04-26.17	Forward 1.47-29.63	Forward 1.47-29.63	Forward 1.47-29.63
Tyre	12.4-24/16.9-34	12.4-24/16.9-34	14.9-26/18.4-38	14.9-26/18.4-38	14.9-26/18.4-38
Max. lifting capacity (KN)/	≥19.4	≥22.9	≥22.9	≥24.7	≥26.5
Weight stack-front（Kg)	240	240	400	400	400
Weight stack-rear(Kg)	240	240	240	240	240
Tractor weight（KG）	4450	4450	4830	4830	4830
Max.Traction（KN）	37.3	37.3	40.5	40.5	40.5
