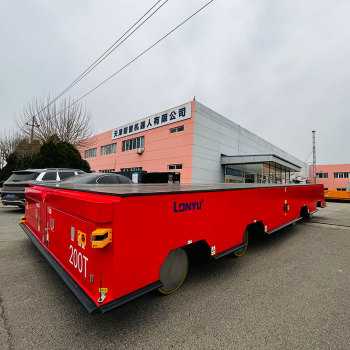

200ton-Heavy-duty-AGV-backpack-transmission-box
- group name
- Automated guided vehicle
- Min Order
- 1 piece
- model
- LY-1-20 0T -816-A
- Nearest port for product export
- Tianjin port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Wed, 05 Nov 2025 04:00:02 GMT
Paramtents
Rated load 200T
Quipment weight 35T
Body shape L8100 *W3500 *H870
Lifting stroke 200mm _ Climbing ability(°) ≤5°
Working environment Indoor and outdoor work
Body structure differential drive
Number of driving wheels (pair) Eight-wheel drive and sixteen wheels
Operation mode The whole vehicle can realize forward and backward
Packging & Delivery
-
Min Order1 piece
Briefing
200 ton Heavy-duty AGV Backpack Transmission Box - OEM/ODM solutions for wholesalers and distributors, ensuring robust performance and reliability.
Detailed
Drive motor type： Low voltage servo motor + independent servo controller
hanging form
1.Hydraulic suspension;
2.It is a passive suspension with reliable performance and even stress on multiple wheels. Walking speed 0-30 meters/min
battery form Lithium Iron Phosphate Battery , 96V/ 600 AH
Navigation Magnetic stripe navigation , inching accuracy ±3mm
control method ：wireless remote
Security
Laser obstacle avoidance sensor + contact collision avoidance + sound and light warning + emergency stop
charging method ：Manual charging
Braking distance (mm) ：Full load braking ≤500mm, no-load braking distance ≤300mm
Protection level： IP44 /IP65
