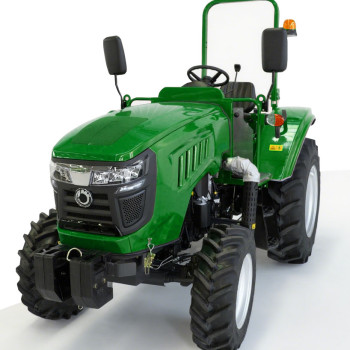

AGRICM AR 25-50HP Compact 4WD Tractor | Stage V Engine | AR 254A / AR 504 A/C
- group name
- E-mark Tractor
- Min Order
- 1 bag
- brand name
- Tieniu/Agricm
- model
- AR 254A / AR 500A / AR 504 A/C
- Nearest port for product export
- Tianjin port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Mon, 17 Aug 2026 19:04:15 GMT
Packging & Delivery
-
Min Order1 bag
Briefing
Detailed
E-mark AR 25-50HP: Compact Power for Confined Farmland
The E-mark AR Series pairs 25-50 HP Euro Stage V engines with an optimized power transmission system, delivering dependable performance for orchards, mountainous areas, terraced fields, and other confined or challenging terrains.
- Models: AR 254A / AR 500A / AR 504 A/C
- Wheel drive: 4x2 or 4x4
- Euro Stage V compliant engine
- Two groups of hydraulic output
- Gear shift: 8F+8R synchromesh shuttle
Why the AR Series Stands Out
Four advantages that make the AR Series a smart choice for distributors, importers, and brand partners.
Compact, Agile & Efficient
Optimized power transmission paired with 25-50 HP Euro Stage V engines ensures operational efficiency and fuel economy, reducing operating costs while keeping high productivity.
Master of Narrow Terrains
Excels in orchards, mountainous areas, and terraced fields. Its compact body and precision control system ensure flexible operation in complex environments, with durable design that withstands frequent turns and bumpy conditions.
Easy Maintenance
The hydraulic lifter features an externally mounted distributor for easy operation and maintenance, reducing repair time and lowering total ownership costs.
Robust & User-Friendly
Three-lever synchronized control design ensures rugged durability and intuitive operation. The 8+8 gear transmission enables efficient, precise shifting through independent control of shuttle, main gear, and range gear levers.
Technical Specifications
Two power options in one compact platform, available with ROPS or CAB configuration.
| Specification | AR 254 A | AR 504 A/C |
|---|---|---|
| Engine model | LAIDONG KM385BT | CHANGCHAI 4G33TC-50L |
| Cylinders | 3 | 4 |
| Bore (mm) | 85 | 95 |
| Displacement (L) | 1.5 | 3.261 |
| Speed (r/min) | 2400 | 2300-2600 |
| Rated power (kW) | 18.4 | 36.7 |
| Engine technology | Mechanical pump + DOC | High-pressure common rail + turbocharged intercooling |
| Gearbox | 8F+8R synchromesh shuttle | 8F+8R synchromesh shuttle |
| Brakes / Clutch | Drum brakes / dual action clutch | Drum brakes / dual action clutch |
| Drive type | 4x4 | 4x4 |
| Rated traction (kN) | 12 | 13.6 / 14.7 |
| Hydraulic outlets | 4 | 4 |
| Fuel tank (L) | 40 | 40 |
| Drawbar | Swing drawbar | Swing drawbar |
| Base PTO (rpm) | 540/1000 | 540/1000 |
| Weight - ROPS/CAB (kg) | 1590 | 1850 / 2020 |
| Height A/B ROPS/CAB (mm) | 2370 | 2490 / 2580 |
| Overall length (mm) | 3430 | 3600 |
| Rear/front track (mm) | 1119 / 1095 | ROPS 1123/1095; CAB 1108/1088 |
| Wheelbase 4WD (mm) | 1692.5 | 1903 |
| Min. ground clearance (mm) | 285 | 350 / 330 |
| Standard tires | 7.5-16 / 11.2-24 | 8.3-20 / 12.4-28 |
| Optional tires | 6.5-16 / 11.2-24 | 7.5-16 / 11.2-28 |
Built for Real Farm Work
The compact footprint and precise control make the AR Series a dependable partner wherever space is tight.
Orchards & Vineyards
Narrow track options and agile steering keep operations smooth between tree rows and vine lines.
Mountainous & Terraced Fields
High traction and stable low center of gravity handle slopes, terraces, and bumpy ground with confidence.
Small Farms & Greenhouses
Compact dimensions and flexible PTO and hydraulic outputs fit daily tillage, transport, and attachment work.
Euro Stage V
Compliant emission technology for EU export markets.
OEM / ODM Ready
Factory-direct manufacturing for distributors and brand partners.
Spare Parts Supply
Extensive parts support and superior after-sales service.
Frequently Asked Questions
Which models does the AR 25-50HP series cover?
The series covers AR 254A (25 HP class), AR 500A, and AR 504 A/C (50 HP class), each available with ROPS or CAB and 4x2 or 4x4 drive options.
Is the AR series certified for EU export?
Yes. The AR series uses Euro Stage V engine technology, and the E-mark certification supports EU market entry.
Can I get OEM branding and custom specifications?
Yes. As a factory-direct manufacturer, we support OEM/ODM programs with custom branding, color, and configuration options for distributors and brand partners.
Ready to Add the AR Series to Your Range?
Contact us for pricing, OEM/ODM options, and spare parts support for your market.
